BrewBuilt® IceMaster 100 | Glycol Chiller | 2600btu | 110V | 8 Gal. Tank Capacity

    Description

    The IceMaster 100 is a powerful and efficient glycol system that provides precise temperature control of multiple Fermenters, but allows you to expand your capacity as needed!

    • Temp Control & Cold Crash up to 4 - 5-7 Gallon Jacketed Tanks!
    • Tank Capacity: 30L/8 Gal. Water Capacity
    • Cooling Capacity: 780 Watt/2600btu/0.26 ton
    • Power: 110V (3.6 amps)

    The IceMaster 100 is designed to cool fermentations in small vessels. It can be used with any vessel that has a glycol jacket or submersed cooling coil/rod. For each vessel you want to cool you will need to buy one of our BrewBuilt Chilling Pump Kits. Each tank is able to be separately temperature controlled. Each Glycol Pump Kit includes a submersible pump that is placed in the cool bath of this chiller along with a digital controller. The digital controller includes a thermal probe that should be inserted into a thermal well in your vessel or can be taped to the outside of the vessel if you don't have a thermal well. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool to your desired set temperature. Up to four tanks can be controlled separately with one IceMaster and four BrewBuilt Chilling Pump Kit (GLY35).

    Compatibility
    The IceMaster can be used with any fermenter that has a built in cooling jacket, added Coolstix, or a submersed cooling coil. It works well as the cooling source for the following sytems and fermenters.

    • BrewBuilt Jacketed Uni Conical - You will need one Glycol Pump Kit for each tank.
    • Coolstix - Coolstix can be added to a wide range of carboys, fermenters, and tanks and the IceMaster works really well in combination. Each Coostix Complete Kit comes with a pump kit and controller.
    • Ss Brewtech Fermenters and Brites with optional FTS Temperature Control Systems - Because FTS systems include a pump and controller you will not need to buy a separate Glycol Pump Kit.
    • Spike Conical with Optional Cooling Package - Because the optional Spike cooling system includes a pump and controller you will not need to buy a separate Glycol Pump Kit.
    • Speidel Tanks with Optional Cooling Jackets - You will need one Glycol Pump Kit for each tank.
    • Grainfather Fermenters - Grainfather fermenters have standard cooling jackets. You will need one Glycol Pump Kit for each fermenter
    • Blichmann Fermenators with Optional Cooling Coil - You will need one Glycol Pump Kit for each Fermenator.

    Capacity
    It is always difficult to determine exactly how many tanks can be chilled at one time as it depends on what is happening in each tank, if the tank is insulated, and what the ambient temperature is. Cold crashing always requires the most energy and requires tank insulation. We have experimented with capacities and can provide this general guide based on a 75°F ambient and neoprene insulation. Neoprene a modest amount of insulation so you would obtain better results using Armaflex or a higher R rated insulation. If only controlling fermentation temps the capacity would be higher. Four BrewBuilt Chilling Pump Kits (GLY35) is the maximum that will fit in the IceMaster. We are working on smaller glycol pump kits, where the pumps have smaller footprints, so the IceMaster right now has the capacity to use 5 pumps through the bulkhead fittings.

    Capacity calculated at cold crashing to 38°F at 75°F ambient with neoprene insulation (double for fermentation temperature control):

    2 - 1BBL (31 Gallon) Jacketed Tanks
    2 - 1/2BBL (15-20 Gallon) Tanks
    3 - 10-14 Gallon Tanks
    4 - 5-7 Gallon Tanks

    Set Up
    In order to hook up the IceMaster to your fermenter or tank's cooling system, you will need 4 lengths of tubing. All tubing connections should be secured with hose clamps.

    • Length 1: Submersible pump outlet to inner barb of 1st bulkhead
    • Length 2: Outer barb of 1st bulkhead to cooling system inlet
    • Length 3: Cooling system outlet to outer barb of 2nd bulkhead
    • Length 4: Inner barb of 2nd bulkhead to IceMaster resevoir (should drain freely, no connection necessary)

    Specifications:

    • Tank Capacity: 30L/8 Gal. Water Capacity
    • Compressor: 3/8 HP
    • Cooling Capacity: 780 Watt/2600btu/0.26 ton
    • Refrigerant: r134a
    • Voltage: 110V (3.6 amps)
    • Dimensions: 410mm x 410mm x 660mm
    • Includes 10 stainless bulkheads with 3/8" OD barbs

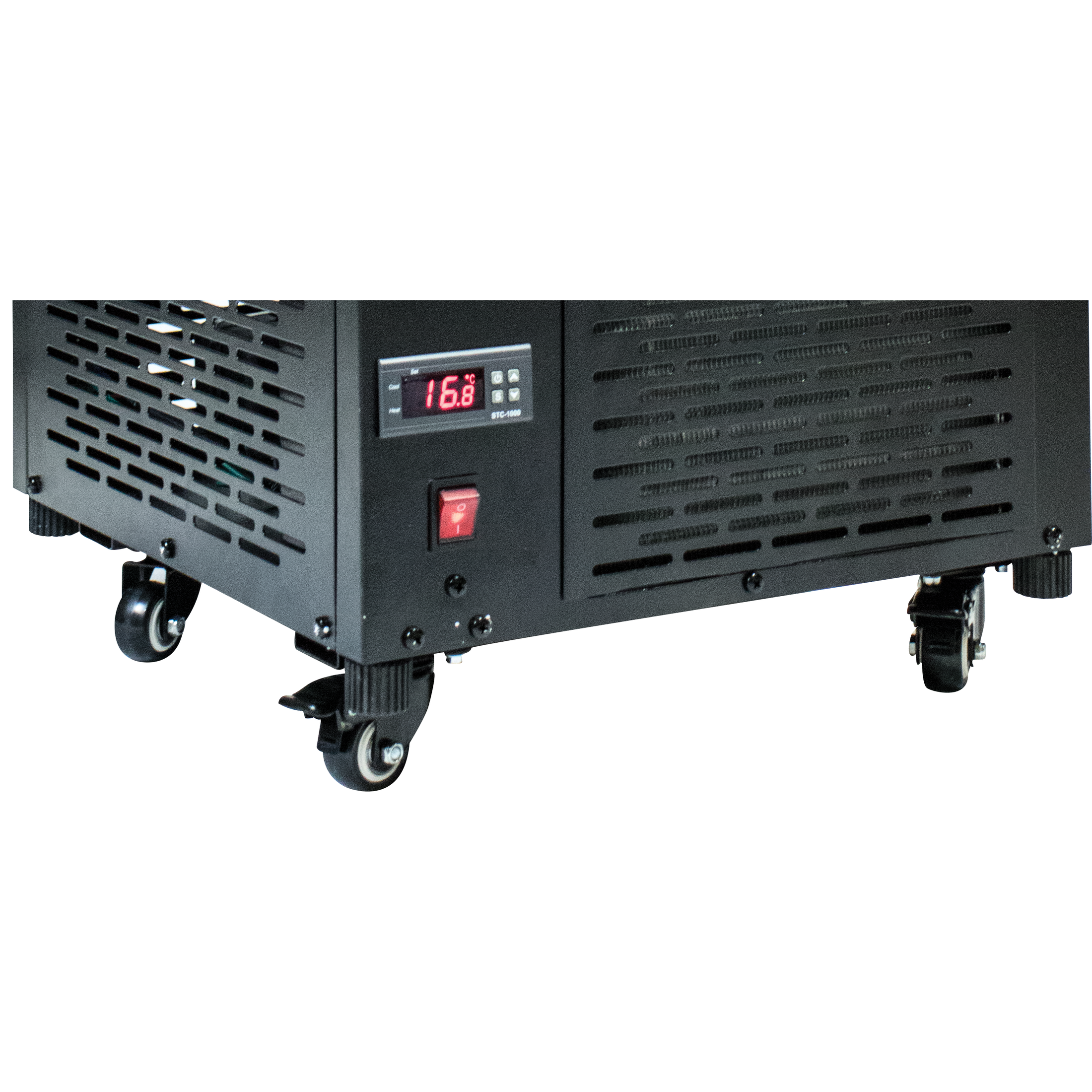

    • Wheels included
    • CE Certified

    Warning: Do not set the reservoir temperature controller lower than 28°F (-2ºC). Running the unit below this temperature may negatively affect the unit's efficiency and has the potential to freeze beer which may impact the finished beer's flavor.

    BrewBuilt® IceMaster 100 | Glycol Chiller | 2600btu | 110V | 8 Gal. Tank Capacity

      Product form

      SKU: GLY353

      $899.99

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        The IceMaster 100 is a powerful and efficient glycol system that provides precise temperature control of multiple Fermenters, but allows you to expand your capacity as needed!

        • Temp Control & Cold Crash up to 4 - 5-7 Gallon Jacketed Tanks!
        • Tank Capacity: 30L/8 Gal. Water Capacity
        • Cooling Capacity: 780 Watt/2600btu/0.26 ton
        • Power: 110V (3.6 amps)

        The IceMaster 100 is designed to cool fermentations in small vessels. It can be used with any vessel that has a glycol jacket or submersed cooling coil/rod. For each vessel you want to cool you will need to buy one of our BrewBuilt Chilling Pump Kits. Each tank is able to be separately temperature controlled. Each Glycol Pump Kit includes a submersible pump that is placed in the cool bath of this chiller along with a digital controller. The digital controller includes a thermal probe that should be inserted into a thermal well in your vessel or can be taped to the outside of the vessel if you don't have a thermal well. The digital controller then measures the temperature of your tank and turns the submersible pump on or off to cool to your desired set temperature. Up to four tanks can be controlled separately with one IceMaster and four BrewBuilt Chilling Pump Kit (GLY35).

        Compatibility
        The IceMaster can be used with any fermenter that has a built in cooling jacket, added Coolstix, or a submersed cooling coil. It works well as the cooling source for the following sytems and fermenters.

        • BrewBuilt Jacketed Uni Conical - You will need one Glycol Pump Kit for each tank.
        • Coolstix - Coolstix can be added to a wide range of carboys, fermenters, and tanks and the IceMaster works really well in combination. Each Coostix Complete Kit comes with a pump kit and controller.
        • Ss Brewtech Fermenters and Brites with optional FTS Temperature Control Systems - Because FTS systems include a pump and controller you will not need to buy a separate Glycol Pump Kit.
        • Spike Conical with Optional Cooling Package - Because the optional Spike cooling system includes a pump and controller you will not need to buy a separate Glycol Pump Kit.
        • Speidel Tanks with Optional Cooling Jackets - You will need one Glycol Pump Kit for each tank.
        • Grainfather Fermenters - Grainfather fermenters have standard cooling jackets. You will need one Glycol Pump Kit for each fermenter
        • Blichmann Fermenators with Optional Cooling Coil - You will need one Glycol Pump Kit for each Fermenator.

        Capacity
        It is always difficult to determine exactly how many tanks can be chilled at one time as it depends on what is happening in each tank, if the tank is insulated, and what the ambient temperature is. Cold crashing always requires the most energy and requires tank insulation. We have experimented with capacities and can provide this general guide based on a 75°F ambient and neoprene insulation. Neoprene a modest amount of insulation so you would obtain better results using Armaflex or a higher R rated insulation. If only controlling fermentation temps the capacity would be higher. Four BrewBuilt Chilling Pump Kits (GLY35) is the maximum that will fit in the IceMaster. We are working on smaller glycol pump kits, where the pumps have smaller footprints, so the IceMaster right now has the capacity to use 5 pumps through the bulkhead fittings.

        Capacity calculated at cold crashing to 38°F at 75°F ambient with neoprene insulation (double for fermentation temperature control):

        2 - 1BBL (31 Gallon) Jacketed Tanks
        2 - 1/2BBL (15-20 Gallon) Tanks
        3 - 10-14 Gallon Tanks
        4 - 5-7 Gallon Tanks

        Set Up
        In order to hook up the IceMaster to your fermenter or tank's cooling system, you will need 4 lengths of tubing. All tubing connections should be secured with hose clamps.

        • Length 1: Submersible pump outlet to inner barb of 1st bulkhead
        • Length 2: Outer barb of 1st bulkhead to cooling system inlet
        • Length 3: Cooling system outlet to outer barb of 2nd bulkhead
        • Length 4: Inner barb of 2nd bulkhead to IceMaster resevoir (should drain freely, no connection necessary)

        Specifications:

        • Tank Capacity: 30L/8 Gal. Water Capacity
        • Compressor: 3/8 HP
        • Cooling Capacity: 780 Watt/2600btu/0.26 ton
        • Refrigerant: r134a
        • Voltage: 110V (3.6 amps)
        • Dimensions: 410mm x 410mm x 660mm
        • Includes 10 stainless bulkheads with 3/8" OD barbs
        • Wheels included
        • CE Certified

        Warning: Do not set the reservoir temperature controller lower than 28°F (-2ºC). Running the unit below this temperature may negatively affect the unit's efficiency and has the potential to freeze beer which may impact the finished beer's flavor.
