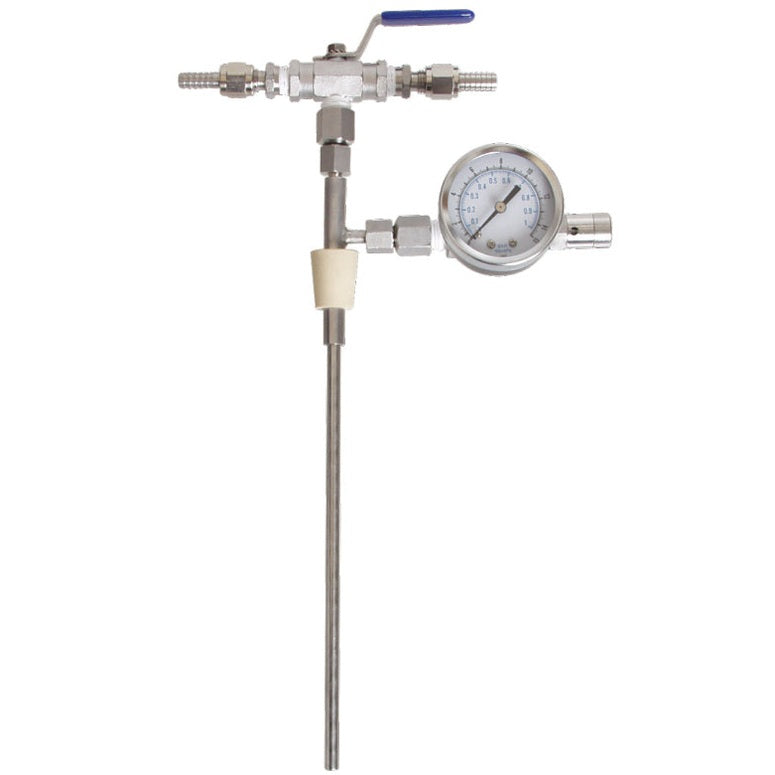

Deluxe Counter Pressure Bottle Filler

    Description

    Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.



    We think our Counter Pressure Bottle Filler is the best on the market, and the Deluxe Counter Pressure Filler takes a proven design to the next level by adding a pressure gauge for monitoring bottle pressure and flared connections for easy cleaning.


    The gauge on this counter pressure bottle filler allows you to know the pressure in your bottle, an incredibly handy feature. The flared connections allow for easy cleaning as you can connect on or disconnect your lines in a matter of seconds. Traditionally these lines can be difficult to sanitize because they were permanently connected with hose clamps.

    Still has all the great feature of our original
    All Stainless Construction (except for a brass backing on the pressure gauge)
    A true Counter Pressure Filler (for less foaming)
    Easy to use Stainless 3-way ball valve on top
    Adjustable Stainless pressure release on side
    Flushes bottle from the bottom not the top


    What is a Counter Pressure Filler? If you currently carbonate and store your homebrew in kegs, you can use a counter pressure filler to bottle beer directly from your kegs. One huge advantage of this method is that since you are bottling already carbonated, clear beer, there will be no sediment at the bottom of your bottles.

    Counter pressure filling is how a brewery bottles beer. The bottle is under pressure while the carbonated beer flows in. Because the interior of the bottle is pressurized there is minimal loss of the CO2 in solution. The opposite of filling under pressure is when you pour a beer into a pint glass where CO2 erupts out of solution creating all that foam. Great in your glass but not good when you are trying to bottle carbonated beer. Our counter pressure filler mimics a single filling head on a professional bottling line, a concept that we all know works very, very well.


    Features While some models flush the bottle from the top and fill from the bottom, our unit features a special valve that allows CO2 and beer to flow down the same stainless tube, directly to the bottom of the bottle. First CO2 flows down into the bottom of the bottle to flush from the bottom up. Next you switch the valve position and beer flows down the same tube, filling from the bottom up. The result is a more effective purging of oxygen and no foam during the filling process - not to mention that the whole thing takes one-hand to operate! Why hope that you flushed your bottle properly using a type of beer gun, when you can know for sure that you have created the best environment for your beer to be stored at by using a Counter Pressure Bottle Filler?

    More Details
    The unit is inserted into the bottle in the off position. The valve is then turned to CO2 to flush the bottle and then to beer for filling. The adjustable pressure relief on the side of the unit allows you control the speed of fill by adjusting the pressure in the bottle. The valve is positioned in such a way that it is easy to use with one hand, while the other holds the bottle. This model is designed for 12oz bottles but can easily be extended to accommodate larger bottles, such as 22oz, with a small piece of 1/4" tubing.

    Setting Your PSI Pressure

    Before you counter pressure fill a bottle make sure you are satisfied with the carbonation level and flavor. The goal for counter pressure bottle filling is to store your beer in the most sanitary and clean environment possible so when you get ready to share your homebrew its presentation is perfect when you go to pour.

    An ideal set point to set your PSI level on your regulator is 10-14 psi. This range is dependent upon the temperature of your beer and the carbonation level. We recommend you start at a lower pressure around 10psi for the first 2-3 bottles to make sure you get everything dialed in before committing to filling a whole case.

    Make sure your keg is always kept cold. If your keg warms up you will have foaming issues.

    Deluxe Counter Pressure Bottle Filler

      Product form

      SKU: KEG804

      $109.99

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Chromium (hexavalent compounds), which is/are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.

        Description

        Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.



        We think our Counter Pressure Bottle Filler is the best on the market, and the Deluxe Counter Pressure Filler takes a proven design to the next level by adding a pressure gauge for monitoring bottle pressure and flared connections for easy cleaning.


        The gauge on this counter pressure bottle filler allows you to know the pressure in your bottle, an incredibly handy feature. The flared connections allow for easy cleaning as you can connect on or disconnect your lines in a matter of seconds. Traditionally these lines can be difficult to sanitize because they were permanently connected with hose clamps.

        Still has all the great feature of our original
        All Stainless Construction (except for a brass backing on the pressure gauge)
        A true Counter Pressure Filler (for less foaming)
        Easy to use Stainless 3-way ball valve on top
        Adjustable Stainless pressure release on side
        Flushes bottle from the bottom not the top


        What is a Counter Pressure Filler? If you currently carbonate and store your homebrew in kegs, you can use a counter pressure filler to bottle beer directly from your kegs. One huge advantage of this method is that since you are bottling already carbonated, clear beer, there will be no sediment at the bottom of your bottles.

        Counter pressure filling is how a brewery bottles beer. The bottle is under pressure while the carbonated beer flows in. Because the interior of the bottle is pressurized there is minimal loss of the CO2 in solution. The opposite of filling under pressure is when you pour a beer into a pint glass where CO2 erupts out of solution creating all that foam. Great in your glass but not good when you are trying to bottle carbonated beer. Our counter pressure filler mimics a single filling head on a professional bottling line, a concept that we all know works very, very well.


        Features While some models flush the bottle from the top and fill from the bottom, our unit features a special valve that allows CO2 and beer to flow down the same stainless tube, directly to the bottom of the bottle. First CO2 flows down into the bottom of the bottle to flush from the bottom up. Next you switch the valve position and beer flows down the same tube, filling from the bottom up. The result is a more effective purging of oxygen and no foam during the filling process - not to mention that the whole thing takes one-hand to operate! Why hope that you flushed your bottle properly using a type of beer gun, when you can know for sure that you have created the best environment for your beer to be stored at by using a Counter Pressure Bottle Filler?

        More Details
        The unit is inserted into the bottle in the off position. The valve is then turned to CO2 to flush the bottle and then to beer for filling. The adjustable pressure relief on the side of the unit allows you control the speed of fill by adjusting the pressure in the bottle. The valve is positioned in such a way that it is easy to use with one hand, while the other holds the bottle. This model is designed for 12oz bottles but can easily be extended to accommodate larger bottles, such as 22oz, with a small piece of 1/4" tubing.

        Setting Your PSI Pressure

        Before you counter pressure fill a bottle make sure you are satisfied with the carbonation level and flavor. The goal for counter pressure bottle filling is to store your beer in the most sanitary and clean environment possible so when you get ready to share your homebrew its presentation is perfect when you go to pour.

        An ideal set point to set your PSI level on your regulator is 10-14 psi. This range is dependent upon the temperature of your beer and the carbonation level. We recommend you start at a lower pressure around 10psi for the first 2-3 bottles to make sure you get everything dialed in before committing to filling a whole case.

        Make sure your keg is always kept cold. If your keg warms up you will have foaming issues.

        Documents
        KEG804-Instructions(2025)
        Important Warnings & Shipping Info +
        Shipping Icon
        Free Shipping: Fast & Free Shipping over $79
        Shipping Icon
        Shipping Rates Apply: Bulk items like grain, bottles, and malt are excluded from our free shipping promotion due to their weight, and often dropship items. Standard shipping rates apply and are calculated at checkout based on your location and order size.
        Drop Ship Icon
        Drop Ship: This product will ship directly from the supplier. Delivery may take 1-4 weeks depending on the vendor.
        Discount Exclusion Icon
        Discount Exclusion: This item is not eligible for sitewide price reductions or percentage discounts. Learn more.
        Freight Icon
        Freight Shipping: This item ships freight only.
        Pre-book Icon
        Pre Order: This item is available for Pre-Order. Full payment is required to reserve stock.
        Shipping Weight: 2.5 lb
        • 5 stars: 29 (54%)
        • 4 stars: 21 (39%)
        • 3 stars: 4 (7%)
        • 2 stars: 0 (0%)
        • 1 star: 0 (0%)
        R
        Rich D.
        Works well

        I tried a few keg-based bottle filler approaches before this one. This was pretty easy to use and has passed the ultimate test - maintains taste profile & carbonation while bottling. The pressure gauge and flare fittings are nice additions over the standard filler. The gauge is pretty high quality.The gauge makes the device lopsided - if it were better balanced I would have given 5 stars.

        T
        Tamara M.

        Purchased for a gift to my son who is a home craft brewer. He loved it. Product arrived earlier than expected

        D
        Dallas E.
        Easy to Use

        Well constructed. Works perfectly to transfer beer from the keg to the bottle.

        C
        Carl W T.
        Took some tinkering to make it work

        3-way valve and outlet line were both a bit loose and leaky as received, but easily tightened. Relief valve would not seal; had to put a spacer behind the internal spring to make it tighter. Worked better once foam got into it. Finally, I had to extend the 3/8" diameter portion of the downcomer to work with the short-format (Sierra Nevada style) bottles. The dimensions appear correct only for long-neck bottles. Finally got it working and finished my bottling run. Only took a foam bath once. Overall carbonation was lower than ideal, but I did not try to push it on the first run.

        J
        Jonathan P.
        works like a champ

        If you're serious about bottling the freshest beer this is the only bottle filler made that does it right. Simply purges all oxygen out of the bottle and transfers beer from the keg under control CO2 pressure. I've had been last two years because of this filler. If you're entering homebrew competitions this filler is for the serious homebrewer.

        H
        Harrison S.

        Una gran herramienta para embotellar rápido y con calidad

        B
        Brian Hall
        Expensive, but necessary for high-carb bottling

        It took a while for me to get the hang of this, but once I did, I was able to slowly and carefully bottle home made soda from my keg without losing much carbonation. There were some pieces of teflon thread tape that made it into one of my bottles, so make sure you run clean water and turn all the valves at pressure to clean out before bottling. The side attachment where the pressure relief valve and pressure meter attaches has some movement (it's not solid), but I'm not sure if that's by design.I also bought the Counter Pressure Accessory Package with the ball-lock attachment (KEG803). The original gas line that came with my keg was 1/4” ID, 1/2” OD, but the gas line that came with the accessory package was 5/16” ID, 9/16” OD. So, the T adapter that came with it was very difficult to attach onto my smaller gas line, but I managed to stretch my skinnier tubing onto the T and get it to work. I may eventually replace my original gas line with the larger 5/16" ID tubing, but I worry that the fittings that attach to my CO2 tank would not work without being replaced also.It does feel a little expensive for what you get, and it does take some time to get used to, but I'm now bottling home made sodas and preserving the highest carbonation level I've ever been able to capture previously using my poor man's beer gun (racking cane with stopper plugged into the picnic tap).

        D
        David M.
        Not the quality I expected

        Some nice features (3way valve, quick connect barbed fittings) but very poor connections between valve body and fill stem and between fill stem and gauge assembly. They appear to be compression fittings that should take conical gaskets, but instead were sealed (or not) with two black rubber o-rings for each fitting, placed in tandem. This arrangement made a very floppy attachment at both places and seemed destined to leak. I fixed with a 1/4” brass “olive” ferrule as a spacer and one o-ring, stuff I had on hand, but as the filler was shipped, it was not acceptable.

        M
        Michael F.
        Blows last straw out of the water.

        A true counter pressure bottle filler. Recommend having a friend assist so as you fill the bottles they can cap them but overall very happy with this.

        R
        Ray B.
        Simple reliable bottling

        I've used mine to bottle about a dozen 5g batches into 1L bottles. It is simple to use, well built and reliable.

        R
        Rubens C de P.
        Best tool to have to fill beer bottles

        Like it a lot, easy to use and the bottles get a lot o pressure.

        D
        Danny L.
        Easy to use

        This was easy to use on both 22oz and 12oz bottles.

        T
        Thomas V.

        Works great for beer comps

        k
        kory l.

        This works very well. Absolutely no complaints after bottling 5 gallons.

        W
        William M.
        Better than faking it with a stopper and a picnic tap

        First off: it works, and it works pretty well. I needed something better than a picnic tap and a tube for bottling root beer and preserving the carbonation. I tried using a stopped and easing off the seal to make my own version of a counter pressure filler, which kinda worked, but I broke two picnic taps in the process, made a big mess, and it was just all-around clumsy. This does a much better job.I docked a star because it's kinda tedious to fill bottles this way; the tube is a little bit too long (In fact, it had poked through the box during delivery. And as it is, it's a little long for 12oz bottles and I have to set it at an angle to get the stopper to seat. I'll probably cut a quarter or half inch off the tip of the tube); and the stopper seems a tad soft.But it does what it advertises, and now I have bubbly bottled root beer.

        R
        ROSS Q.
        Works well

        Fills bottles fast and with just the right amount of head space each time. Only issue I have is that the valve does leak some CO2 when in the off position.

        I
        Ian P.

        The unit is fine but the instructions could have been clearer for a first time user. It took some trial and error to get it right.

        B
        Brent K.
        Fill bottles better - less foam, more consistent fill

        Works great. Contact between rubber stopper and tube could be tighter as there seems to be some leakage, but not a big deal.

        P
        Philip M.
        Missing Stopper

        I just received this yesterday and was a little disappointed there was no stopper in the package as advertised. Now I have to purchase a stopper before I can try it. Other than that it seems like a good piece of equipment.

        A
        Andrew W.
        Works like a dream

        Everything you'd want in a counter-pressure filler. I have used other models in the past and this one is smooth sailing, plain and simple. A few thoughts / recommendations:(1) Throw the whole thing, with your bottles, in with your beer the morning you're going to bottle. If everything is at that same cold temp, your foaming issues will be minimized.(2) Heed instructions about maintenance. There are easy ways to adjust and maintain the pressure relief valve and the 3-way ball valve that sits atop the unit. I've read other reviews of people who had small issues with these parts - but it's clear they didn't read the instructions, unfortunately.(3) If at all possible, get a partner to do the capping. It is worth putting off for a day if you can have that extra set of hands around to help. (4) Relax, don't worry, and have a homebrew!

        m
        mateo
        better than no using one

        botling have always been dificult and tedius for me, counter presure bottler filler works well but still is a hard work, but I recomend it is better than noting.

        J
        JT
        Works well

        Works pretty well. Really helpful too if you over carbonate your beer.

        J
        JJSCOTT
        Great Item

        I got this because I had issues with my blichmann filler always giving me flat beer. This counter pressure filler has never let me down and it is easy to clean. Sold the blichmann and never looked back. Thanks

        D
        Douglas O
        Good way to fill bottles

        It takes some time to get the gas and beer lines set up, but then bottles can be filled quickly and easily. The check valve is rather touchy - only minor rotation of the control nut is required. Naturally, be sure to clean it well after use as any remaining beer will prevent proper functioning.

        R
        Rock Creek Brew House
        Works perfect

        I really love this for sure, this works excellent for my operation. I am able to fill 10-12 bottles off each keg so I have a few around to take to friends and various tastings. I have had some of the bottles for a couple of months in the fridge, when I open them they are keg perfect. actually smother since they seem to have even more time to age. I am very happy with the product. Make sure you have a cold keg going in and the bottles fill fine, make sure you purge first and fill to the top, I use a try under the bottles to catch any spill. I give this product a five star for performance, ease of clean up and quality. Good job More Beer on this one!

        S
        Stan W
        This works great

        It takes a little practice to get this to work well. But once this learning curve is over, it is amazingly easy to use. I now have know problem with foaming, gushers, and spillage. For me, the pressure gauge is essential to monitor the internal filling pressures

        C
        Chuck K
        Great Bottle Filler, Imperfect Check Valve

        When I first got this bottle filler I wasted a good half dozen 22oz bottles of beer before I realized that the pressure relief valve wasn't installed properly. Essentially I could not get the bottles to hold pressure. The valve was always partly open so there wasn't enough counter pressure in the bottle to prevent foam from forming and I was basically pouring a lot of foam.Once I realized that there was an issue I unscrewed the relief valve cap, removed the spring, and realized the valve was crooked. After several attempts I was able to straighten it with my finger, drop the spring over it, and screw the cap back on completely. Finally the bottle would hold pressure and I was able to pour pretty much foam-less beer all the way to the middle of the neck.I've bottled about three cases of 22oz bottles at this point and this bottle filler really works great. It's just a shame that the check valve requires such care in order to seat properly.

        S
        SonnyPeters
        Nice but unsure of craftmanship

        I just opened mine and used it for the first time. It made filling bottles from a keg a breeze. The only complaint I have is where the pressure relief valve is hooked onto the stem seems fairly loose. I don't know if it is supposed to be this way. I was thinking it would be connected pretty tightly, but it wiggles about a 1/4 inch in any direction.

        L
        LJ
        Works Perfectly!

        Once you get it down it is the best! I know and trust that my bottles are carbonated to the right pressure I need. I use my double regulator off one of my CO2 tanks and hook one regulator side up to the bottle filler and one up to the keg and set the desired bottle pressure on the filler and then do about 1 psi less on the keg and has work well for me!

        p
        paul s
        awesome product

        I use to bottle and would enjoy being able to give bottles of beer away. But then I got into kegging and bottling went away for me. I would invite friends over but sometimes my buddies wouldn't be able to visit in time before the keg was empty. Then I found this gadget and it works great, I can fill bottles from my keg and be able to put some away for my friends before the keg is tapped out. Recommend this item if you enjoy giving away bottles of beer but prefer to keg instead.
